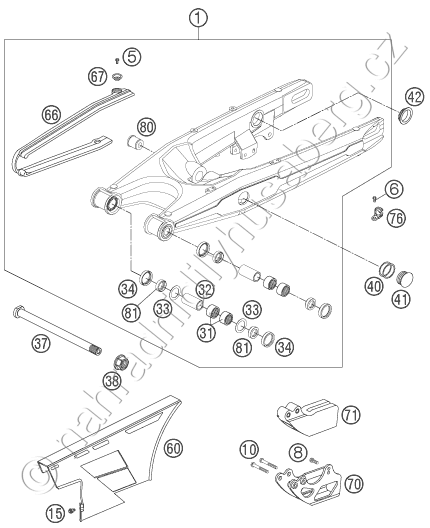

Díly pro SWING ARM
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 80004030144 SWINGARM CPL. HUSABERG 05 |
Na dotaz | 1 |
| 5 | 0015060123 HH COLLAR SCREW M 6X12 WS=8 |
17 Kč | |
| 6 | 0025050126 HH COLLAR SCREW M5X12 TX30 |
36 Kč | |
| 8 | 0015060163 HH COLLAR SCREW M 6X16 WS=8 |
17 Kč | |
| 10 | 0025060456 HH COLLAR SCREW M6X45 TX30 |
29 Kč | |
| 15 | 59001092050 SPECIAL SCREW M6X12,5 WS=8 |
29 Kč | |
| 31 | 58033097000 NEEDLE BEARING HK 2216 |
148 Kč | |
| 32 | 80004032100 BUSH. SLEEVE SWINGARM BEAR. 05 |
219 Kč | |
| 33 | 54603036000 STOP DISK 22,2X31,7X1 |
39 Kč | |
| 34 | 0760253270 RADIAL SHAFT SEAL 25X32X7 |
60 Kč | |
| 37 | 80004037100 SWINGARM BOLT L=237MM |
935 Kč | |
| 38 | 54804038000 SELF LOCK.NUT M16X1,5 WS=19 03 |
246 Kč | |
| 40 | 0770253240 O-RING 25,30X2,40 NBR70 |
18 Kč | |
| 41 | 80004041000 CLOSING COVER SWINGARM 04 |
220 Kč | |
| 42 | 58404041100 CLOSING COVER ROUND 03 |
25 Kč | |
| 60 | 80004060100 CHAIN GUARD 05 |
560 Kč | |
| 66 | 80004066000 CHAIN SLIDING GUARD 04 |
449 Kč | |
| 67 | 46104066050 BUSH FOR CHAINSLIDER GUARD 02 |
57 Kč | |
| 70 | 50207070044 RETAINING PLATE CHAIN GUIDE\'94 |
Na dotaz | 1 |
| 71 | 54607066100 CHAIN GUIDE REAR \'94 |
326 Kč | |
| 76 | 54611076100 RETAIN.CLAMP FOR BRAKE HOSE\'96 |
29 Kč | |
| 80 | 80004080100 BUSHING SUPPORT MONOSH. 2005 |
294 Kč | |
| 81 | 80004034000 BUCKET F. SHAFT SEAL RING 04 |
108 Kč |
