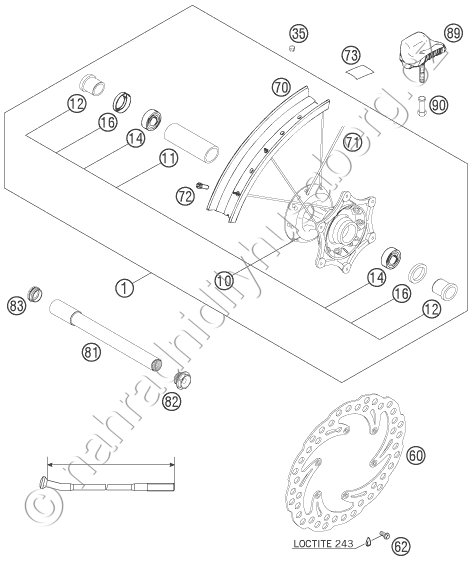

Díly pro FRONT WHEEL
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 8000900104491 |
Na dotaz | 1 |
| 10 | 5480901004491 FRONT HUB CPL. SX SILVER 03 |
6 664 Kč | |
| 11 | 54809011000 BEA.SPACERTUBE 35X2 L=79,4 03 |
446 Kč | |
| 12 | 78009012000 SPACER BUSHING F. FR. WHEEL 08 |
490 Kč | |
| 14 | 0625069068 GR.BALL BEAR.6906 DDU2CG23S6NM |
445 Kč | |
| 16 | 0760354771 SHAFT SEAL RING 35X47X7 TC |
65 Kč | |
| 35 | 55003135000 PLUG FOR RIM |
29 Kč | |
| 60 | 54809060200 BRAKE DISC FRONT D=260MM 05 |
2 861 Kč | |
| 62 | 59009062013 SPECIAL SCREW M6X13 WS=8 10.9 |
20 Kč | |
| 70 | 51509070000 RIM FRONT 1,6\'\'X21\'\' EXCEL AL7 |
4 884 Kč | |
| 71 | 50309074228 SPOKE M4,5X228-21\'\' 07 |
60 Kč | |
| 72 | 81210072100 SPOKE NIPPLE QUADRAX M4,5 |
45 Kč | |
| 73 | 50309073000 RIM BAND 21\'\' |
198 Kč | |
| 81 | 77309081000 WHEEL SPIN.FR. D=26 M24x1,5 07 |
1 413 Kč | |
| 82 | 54809082000 SPINDLE SCREW M24X1,5 WS=27 03 |
215 Kč | |
| 83 | 54809081050 PLUG BUSHING WS=27 03 |
113 Kč | |
| 89 | 78109090000 RIM LOCK 1,60\'\' |
375 Kč | |
| 90 | 77110090050 NUT FOR WHEEL HOLDER |
33 Kč |
