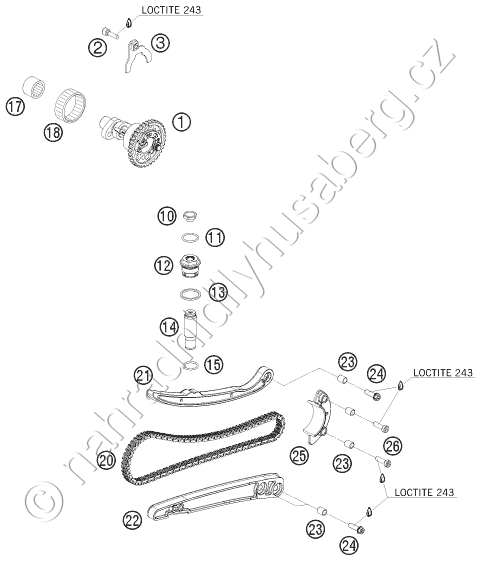

Díly pro TIMING DRIVE
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 78136010033 CAMSHAFT CPL. WITH DECO |
5 400 Kč | |
| 2 | 0912060208 AH SCREW DIN0912-M 6X20 SS |
23 Kč | |
| 3 | 78036012033 RETAINING PLATE CAMSHAFT CPL. |
239 Kč | |
| 10 | 77336008010 HOLDING BOLT |
151 Kč | |
| 11 | 0770010010 O-RING 10.00X1.00 NBR70 |
18 Kč | |
| 12 | 78036008100 CHAIN ADJUSTER HOLDING BOLT |
334 Kč | |
| 13 | 0603242920 CU SEAL-RING DIN7603 A24X29X2 |
29 Kč | |
| 14 | 77036003000 CHAIN ADJUSTER HYD. 05 |
1 301 Kč | |
| 15 | 0770180020 O-RING 18.00X2.00 NBR70 |
21 Kč | |
| 17 | 0618182414 NEEDLE SLEEVE HK1814RS18/24/14 |
156 Kč | |
| 18 | 0618404712 NEEDLE SLEEVE HK4012B40X47X12 |
201 Kč | |
| 20 | 78036013000 TIMING CHAIN 110T 08 |
1 411 Kč | |
| 21 | 81236002000 TENSIONING RAIL |
349 Kč | |
| 22 | 81236001000 CHAIN GUIDE |
129 Kč | |
| 23 | 77036001050 SPACER BUSHING 6.1X8.2X9.1 05 |
55 Kč | |
| 24 | 0025060206 HH COLLAR SCREW M6X20 TX30 |
29 Kč | |
| 25 | 81236005000 CHAIN SKIP PROTECTION |
69 Kč | |
| 26 | 0984060203 AH SCREW DIN6912-M 6X20 8.8 |
28 Kč |
