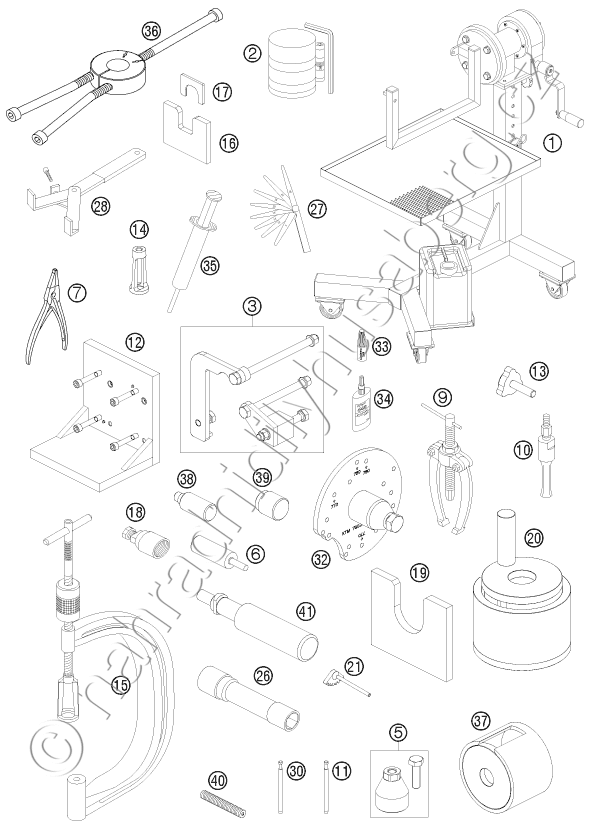

Díly pro SPECIAL TOOLS (ENGINE)
| Číslo dílu na schématu | Kód dílu Název dílu | Cena za kus vč. DPH | Doporučený počet |
|---|---|---|---|
| 1 | 61229001000 UNIVERSAL MOUNTING RACK |
26 675 Kč | |
| 2 | 60029015000 PISTON RING COMPRESSOR CPL. 03 |
3 052 Kč | |
| 3 | 81229002000 ATTACHMENT CPL. |
2 377 Kč | |
| 5 | 75029021000 EXTRACTOR PRIM. CPL. |
1 102 Kč | |
| 6 | 77329051000 UNLOCK CHAIN TENSIONER |
943 Kč | |
| 7 | 51012011000 SPECIAL CIRCLIP PLIER |
1 346 Kč | |
| 9 | 15112017000 BUSHING EXTRACTOR |
4 265 Kč | |
| 10 | 15112018100 INTERN.BEAR.PULLER 18-23 MM |
4 551 Kč | |
| 11 | 77029026000 LIMIT PLUG GAUGE F.VALVE GUIDE |
554 Kč | |
| 12 | 75029050000 ON TENSIONER PL. CYLINDER HEAD |
6 285 Kč | |
| 13 | 75029051000 PRESS OUT PUNCH CPL. |
974 Kč | |
| 14 | 78029060000 VALVE SPRING TENSION APPLICAT. |
1 593 Kč | |
| 15 | 59029019000 VALVE SPRING LEVER |
7 093 Kč | |
| 16 | 75029047051 PRESS OUT PLATE BOTTOM PART |
1 495 Kč | |
| 17 | 75029047050 PRESS OUT PLATE TOP PART |
1 033 Kč | |
| 18 | 58012009000 FLYWHEEL EXTRACTOR |
961 Kč | |
| 19 | 78029009100 SEPARATOR PLATE CRANKSHAFT |
2 288 Kč | |
| 20 | 75029047000 PRESS. TOOL F. CRANKS. CPL. |
13 388 Kč | |
| 21 | 80029004000 GEAR SEGMENT CPL. 04 |
1 729 Kč | |
| 26 | 75029172000 SPARK PLUG WRENCH |
1 516 Kč | |
| 27 | 59029041100 FEELER GAUGE SET |
262 Kč | |
| 28 | 51129003000 CLUTCH HOLDER |
3 858 Kč | |
| 30 | 59029026006 LIMIT PLUG GAUGE F.VALVE GUIDE |
458 Kč | |
| 32 | 75029048100 HOUSING SEPARATING TOOL |
1 173 Kč | |
| 33 | 6899785 LOCTITE 243 BLUE 5 ML |
340 Kč | |
| 34 | 58429059000 LOCTITE 648 GREEN 24ML |
597 Kč | |
| 35 | 58429059200 LOCTITE 5910 50ML |
419 Kč | |
| 36 | 58429037043 MOUNTING TOOL F.BEARING NJ 207 |
2 061 Kč | |
| 37 | 78029008000 PRESS. TOOL F. CRANKSHAFT |
6 482 Kč | |
| 38 | 75029044020 PRESS PUNCH CAMSHAFT BEAR. SM. |
892 Kč | |
| 39 | 75029044010 PRESS PUNCH CAMSH. BEAR. LARGE |
892 Kč | |
| 40 | 0113080802 ENGINE BLOCKING SCREW |
288 Kč | |
| 41 | 77329030100 PLUG IN FUSE PISTON PIN |
1 086 Kč |
